PITOT TUBE PUMP

Pitot tube pump

90° cutaway · Assembled

Loading the 3D modelPreparing the pump, pickup tube, and seal…

Drag to rotate · Scroll to zoom · Right-drag to pan

ASSEMBLED / SEPARATED

Exploded view

Drag to separate the assemblies

Viewing mode

Loading model

Display aids

Part names Flow particles

Rotating partsStationary parts

Main components

Select to focus

Operating principle

Rotor turns · Pickup stays fixed

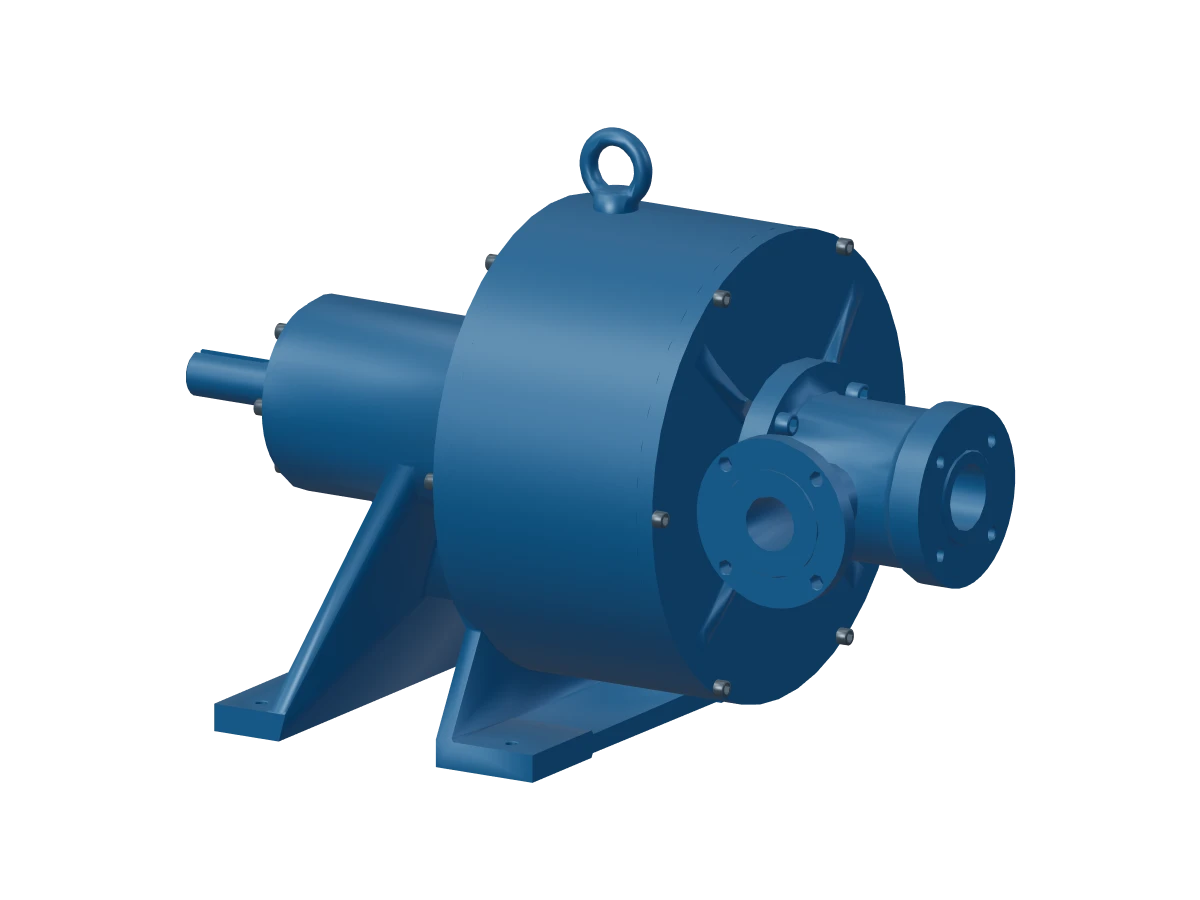

In the arrangement shown, liquid enters on the left and passes through ten inlet passages into the rotating chamber. The stationary pickup tube faces the flow, converts part of its velocity energy into pressure, and carries the liquid to the outlet on the right. The inlet and outlet positions can be arranged to suit your piping.
